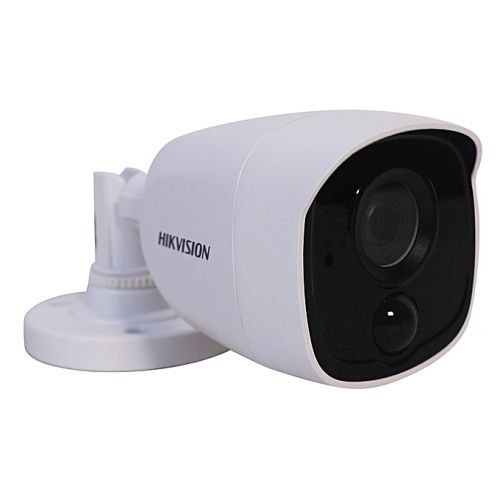

PIR HD CAMERAS MOTION DETECTION


SPECIFICATIONS
  • Model:DS-2CE11DOT-PIRL
  • 2 MP high performance CMOS
  • 1920 × 1080 resolution
  • 2.8 mm, 3.6 mm fixed focal lens
  • PIR detection, visual alarm
  • EXIR 2.0, smart IR, up to 20 m IR distance
  • IP67
  • Up the coax (HIKVISION-C)

KSh3,500.00KSh4,500.00

Camera

Angle Adjustment: Pan: 0°to 360°, Tilt: 0°to 180°, Rotate: 0°to 360°
Image Sensor: 2.0 megapixel progressive scan CMOS
Signal System: PAL/NTSC
Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time: PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens: 2.8 mm, 3.6 mm fixed focal lens
Lens Mount: M12
Day& Night: IR cut filter
Horizontal Resolution: 1920 (H) × 1080 (V)
Video Frame Rate: PAL: 1080p@25fps
NTSC: 1080p@30fps
Synchronization: Internal Synchronization

Lens

Horizontal Field of View: 103.5°(2.8 mm), 80.3°(3.6 mm)

Menu

White Light: Alarm/Off
D/N Mode: Auto/Color/BW (Black and White)
White Balance: ATW/MANUAL
AGC: Yes
Language: English/Chinese
Function: Brightness, Contrast, Sharpness, Saturation, DNR, Mirror

Interface

Video Out: 1 HD analog output

General

IR Range: Up to 20 m
PIR Range: Angle: 110°, Range:11 m
Material: Metal
Ingress Protection: IP67
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC±25%
Communication : Up the coax, Protocol: HIKVISION-C (TVI output)
Dimension: 68 mm × 70 mm × 179.8 mm ( 2.68″ × 2.76″ × 7.08″ )
Weight: Approx. 345 g (0.76 lb.)

SKU: N/A Categories: ,
TYPE

DS-2CE11D8T-PIRL, DS-2CE71DOT-PIRL, DS-2CE71DOT-PIRL, DS-2CE71D8T-PIRL, DS-2CE12DOT-PIR, DS-2CE11D0T-PIRLO, DS-2CE71D0T-PIRLO, DS-2CE12D0T-PIRLO
